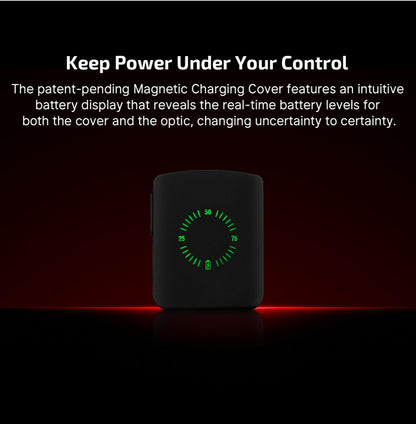

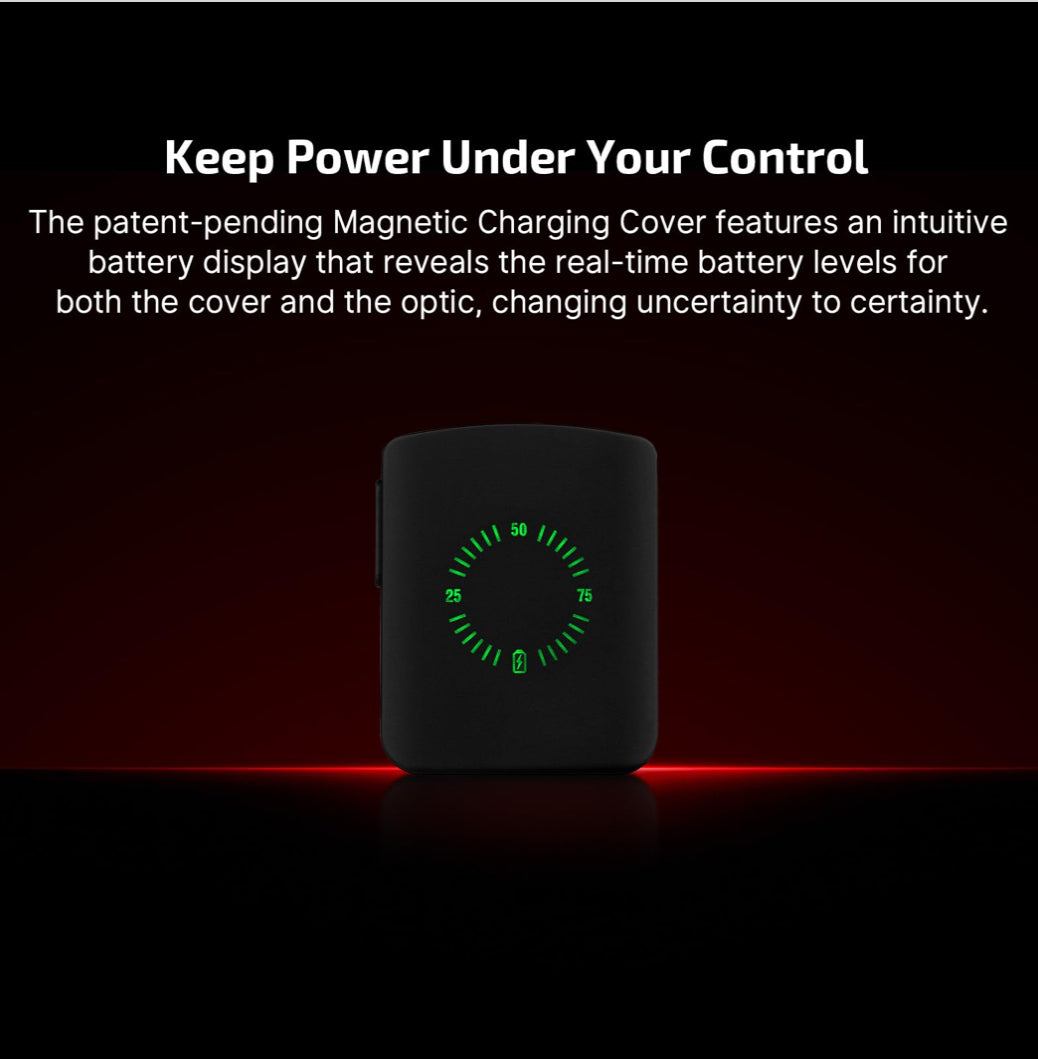

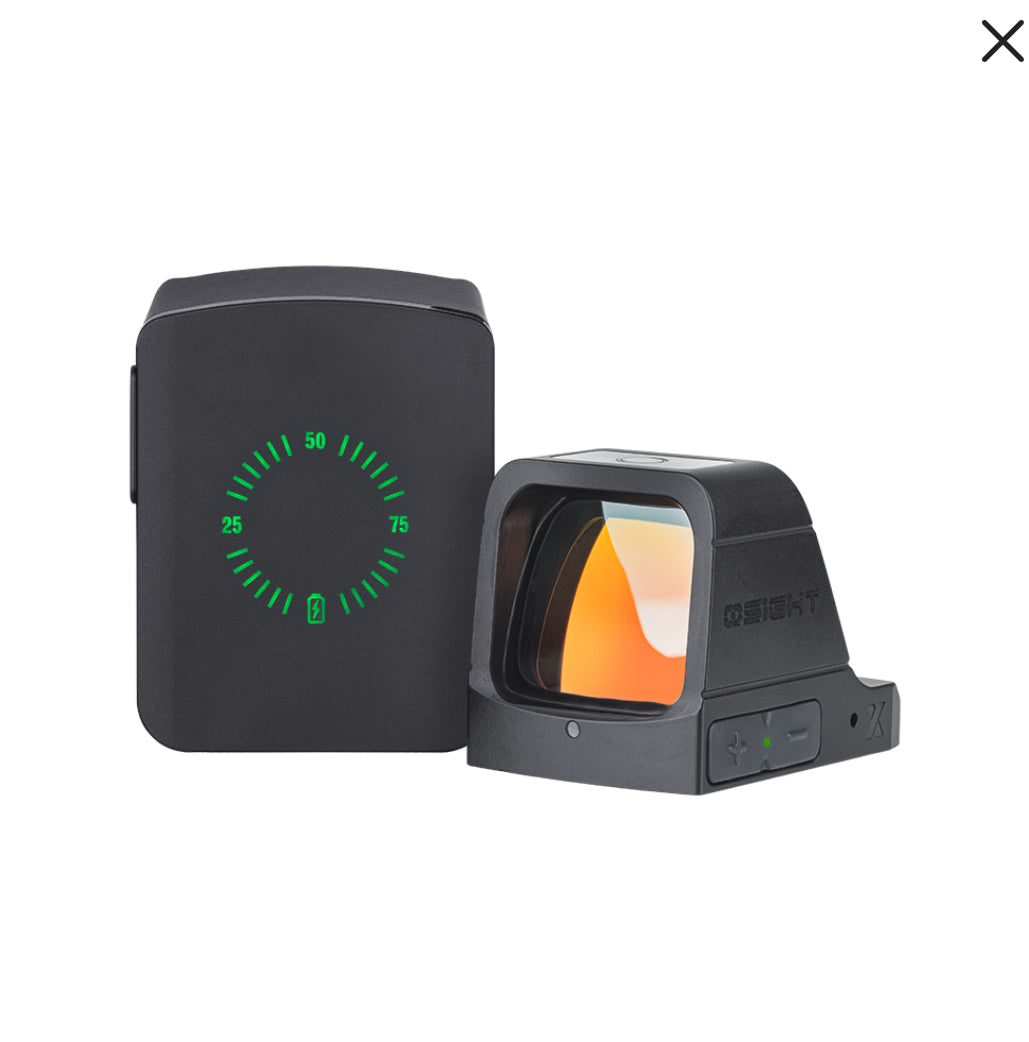

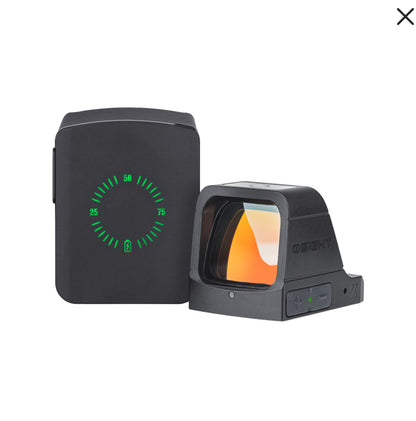

• Industryʼs First Magnetic Charging Cover: The Osight X boasts a pioneering Magnetic Charging Cover featuring a battery display that reveals the real-time battery levels for both the cover and the optic, making uncertainty certain.
• Durable OAL™ Housing Material: The OAL™ housing is tougher, stronger, and nearly as lightweight as industry-standard 7075 aluminum, ensuring durability and a professional edge over time.
• Large Field of View with Multi-Coated Lens: The advanced anti-reflective lens coatings maximize light transmission for impressive clarity, enabling you to swiftly capture targets, with precision and confidence.

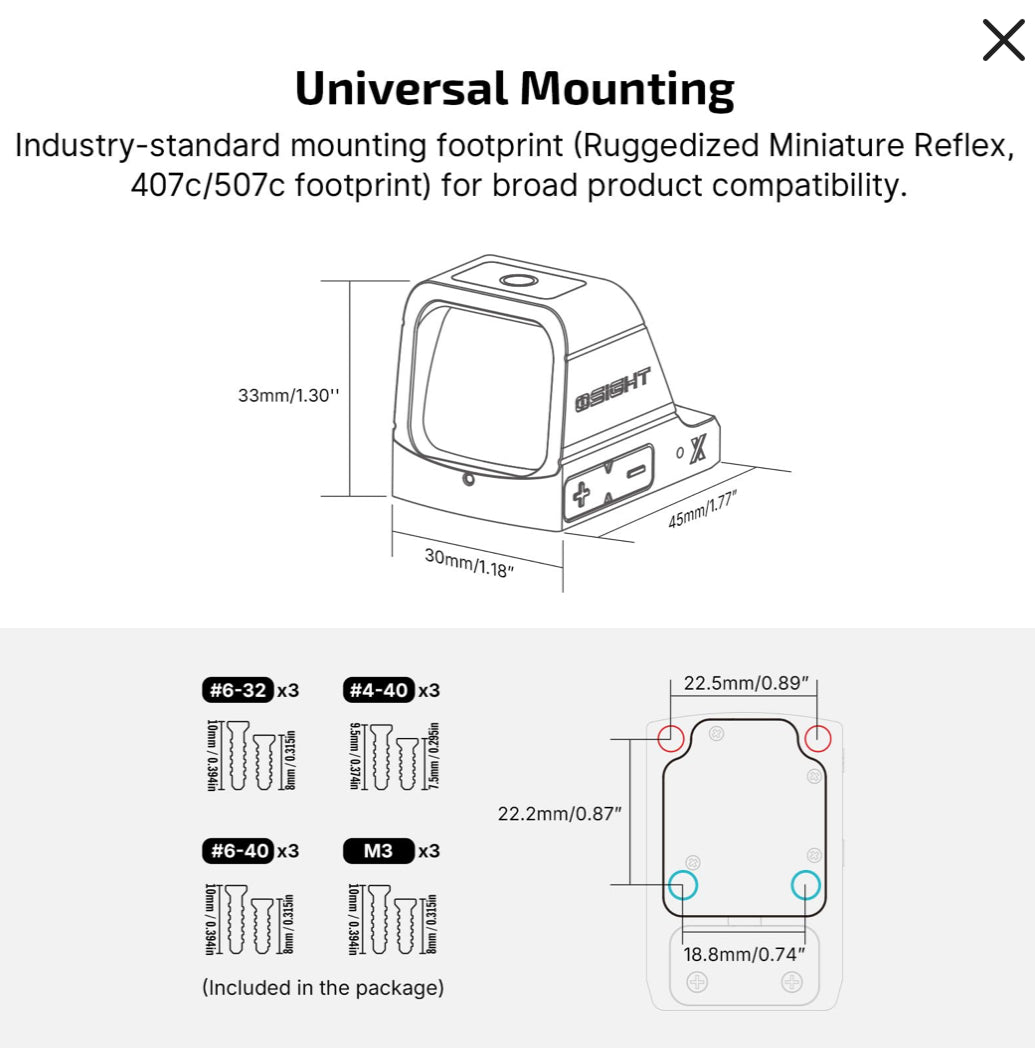

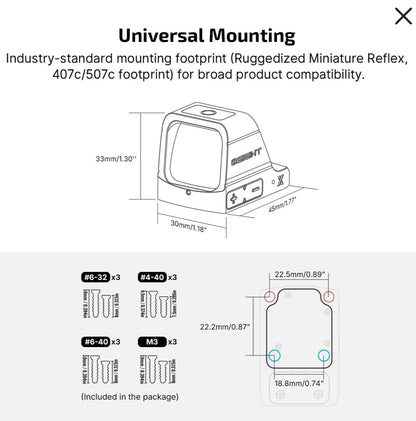

• Most Common Footprint: By adopting the industry-standard mounting footprint (Ruggedized Miniature Reflex, 407c/507c footprint) for optic cuts, the Osight X ensures versatility and ease of integration(use included screws).

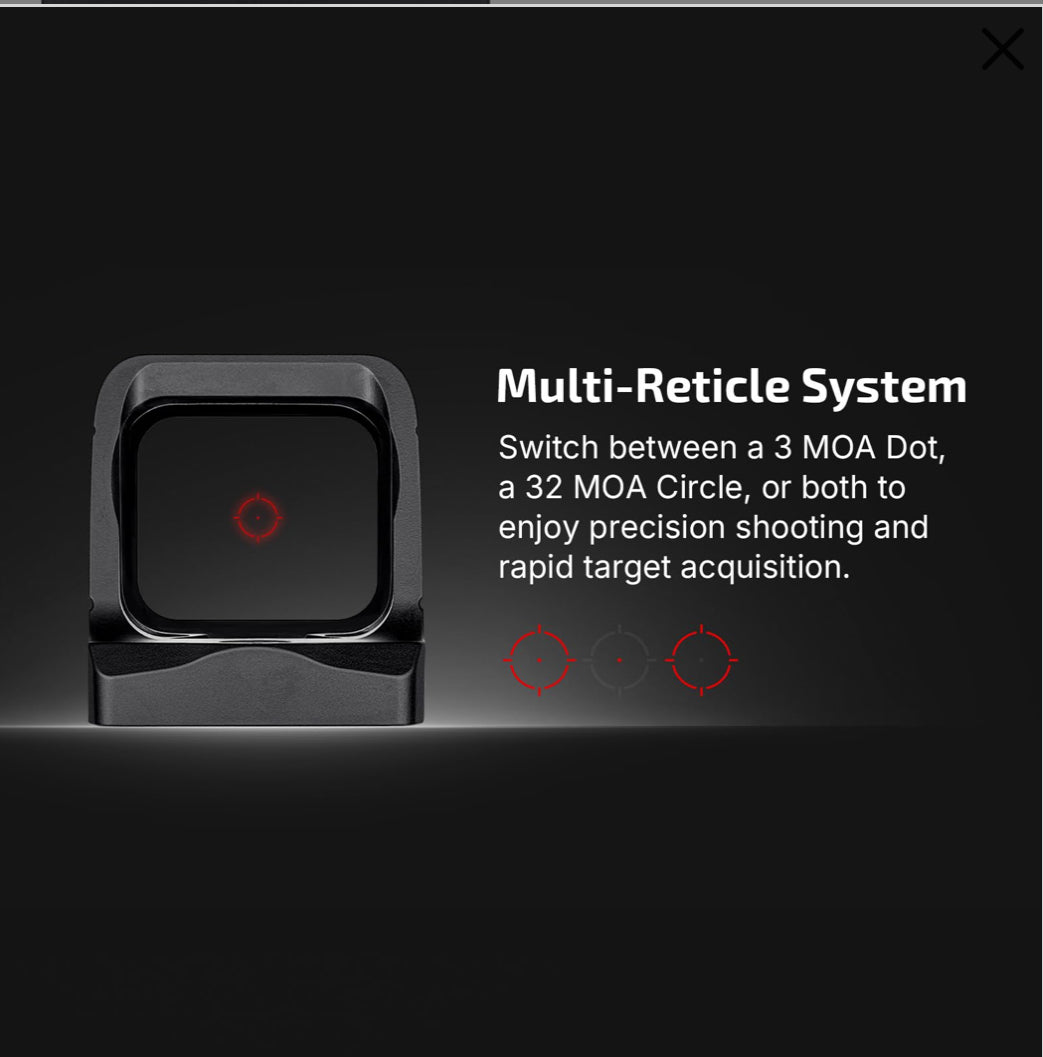

• 3 MOA Dot & 32 MOA Circle: Switching between dot-and-circle, dot-only, or circle-only reticles, you can tailor your aiming solution to any shooting scenario. The sharp and bright dot-and-circle reticle provides a cutting-edge aiming experience.
Technical Details
-
Materials
- Optic Material: OAL
- Charging Cover Material: AL6061+PC
-
General Data

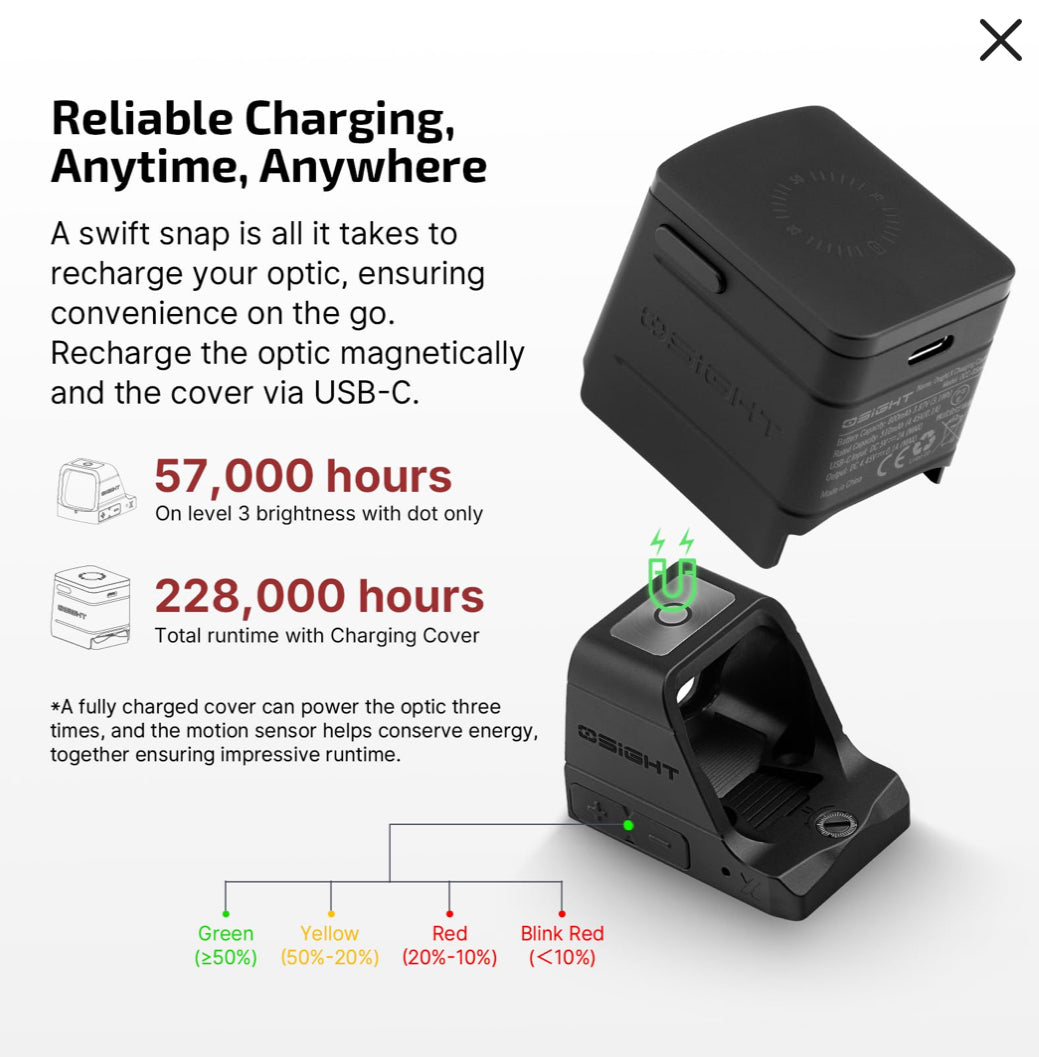

- Charging: Optic – Magnetic; Cover – USB-C
- Adjustment: 1 MOA per click
- Reticle: 3 MOA Dot & 32 MOA Circle
- Multi-Coatings: Yes
- Light Sensor Technology: Yes
- Motion Sensor Function: Yes
-
Power Source:
- Optic – Built-in 170mAh Rechargeable Lithium Polymer Battery
- Charging Cover – Built-in 800mAh Rechargeable Lithium Polymer Battery
- Max Runtime: 57,000 hours (level 3 brightness, dot only)
- Unlimited Eye Relief: Yes
- Brightness Settings: 10 daylight & 2 night vision
- Light Wavelength: 660 nm
- Reticle Color: Red
- Magnification: 1×
- Parallax Free: Yes
- W&E Travel Range: ±45 MOA
-
Torque Specification:
- M3 – 15 in-lbs
- 4-40 – 15 in-lbs
- 6-32 – 17 in-lbs
- 6-40 – 17 in-lbs
- Window Size: 0.94 × 0.85 in
Technical Characteristics
- Waterproof: Optic – IPX6; Cover – IPX4
-
Weight:
- Optic – 1.62 oz / 46 g
- Charging Cover – 1.76 oz / 50 g
- Use & Packaging
- Packaging: Carton box
- Applications: Competition, training, self-defense, home defense, duty use
-
Dimensions
- Optic: 1.77 × 1.18 × 1.30 in
- Charging Cover: 1.85 × 1.38 × 1.73 in
-
Temperature Range
- Working: 0–45°C (32–113°F)
- Storage: –20–60°C (–4–140°F)

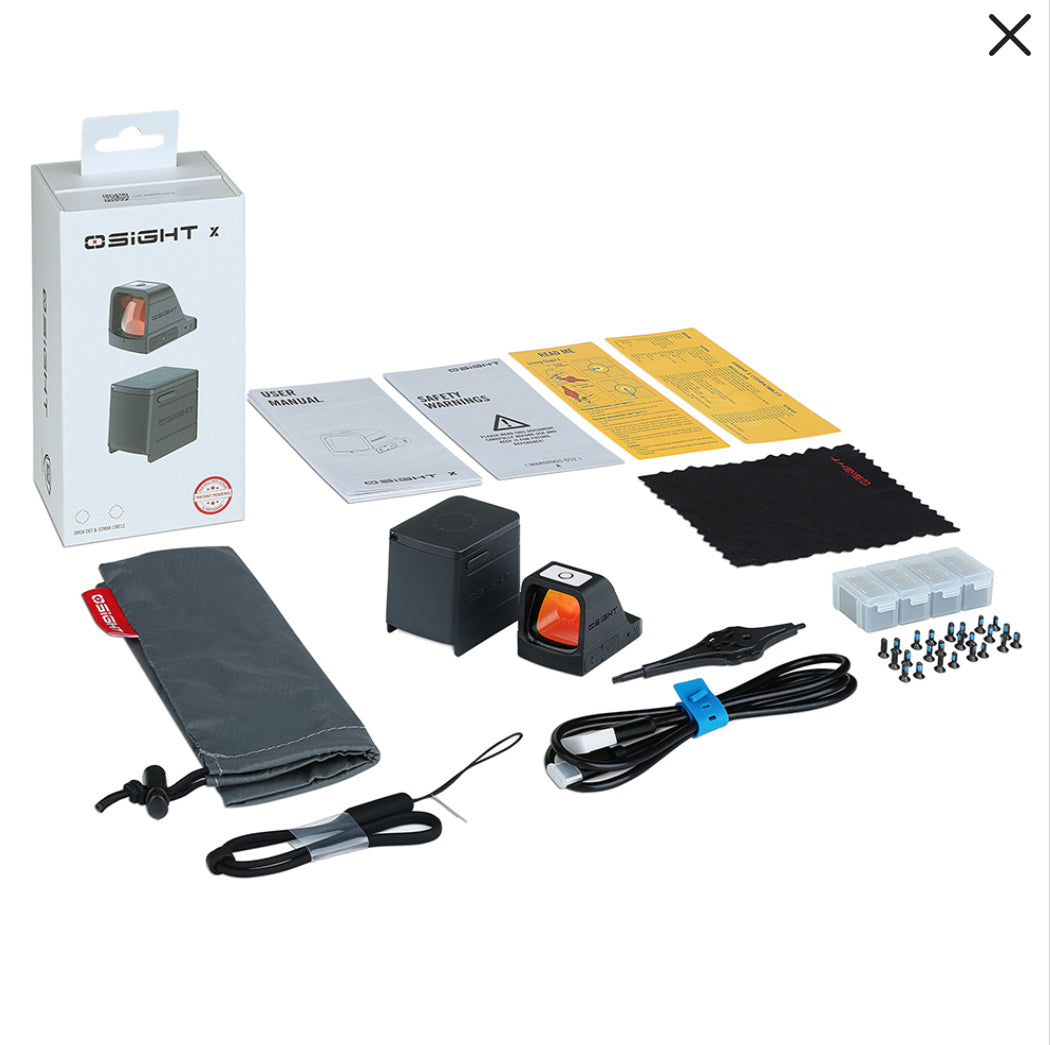

Package Contents
- Optic ×1
- Charging Cover ×1
- Adjustment Tool ×1

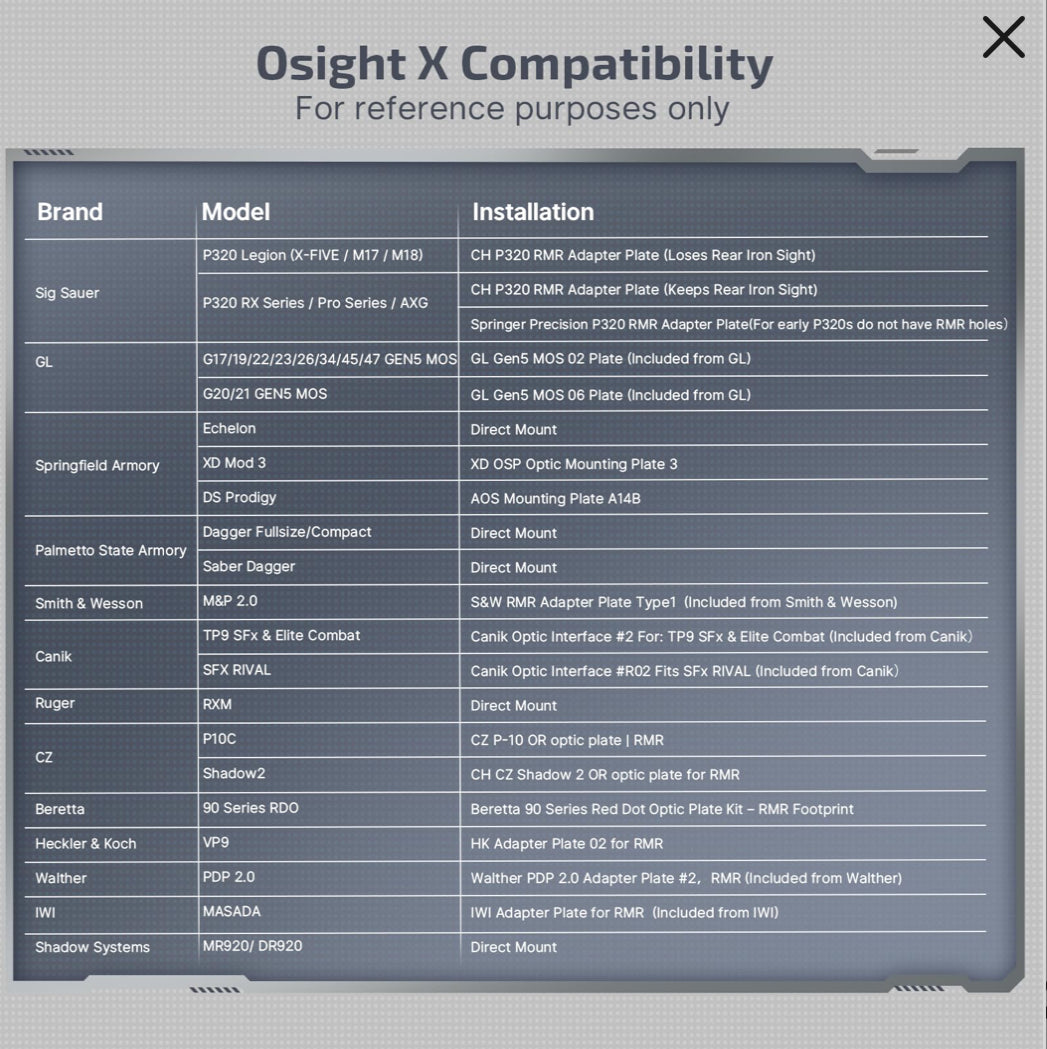

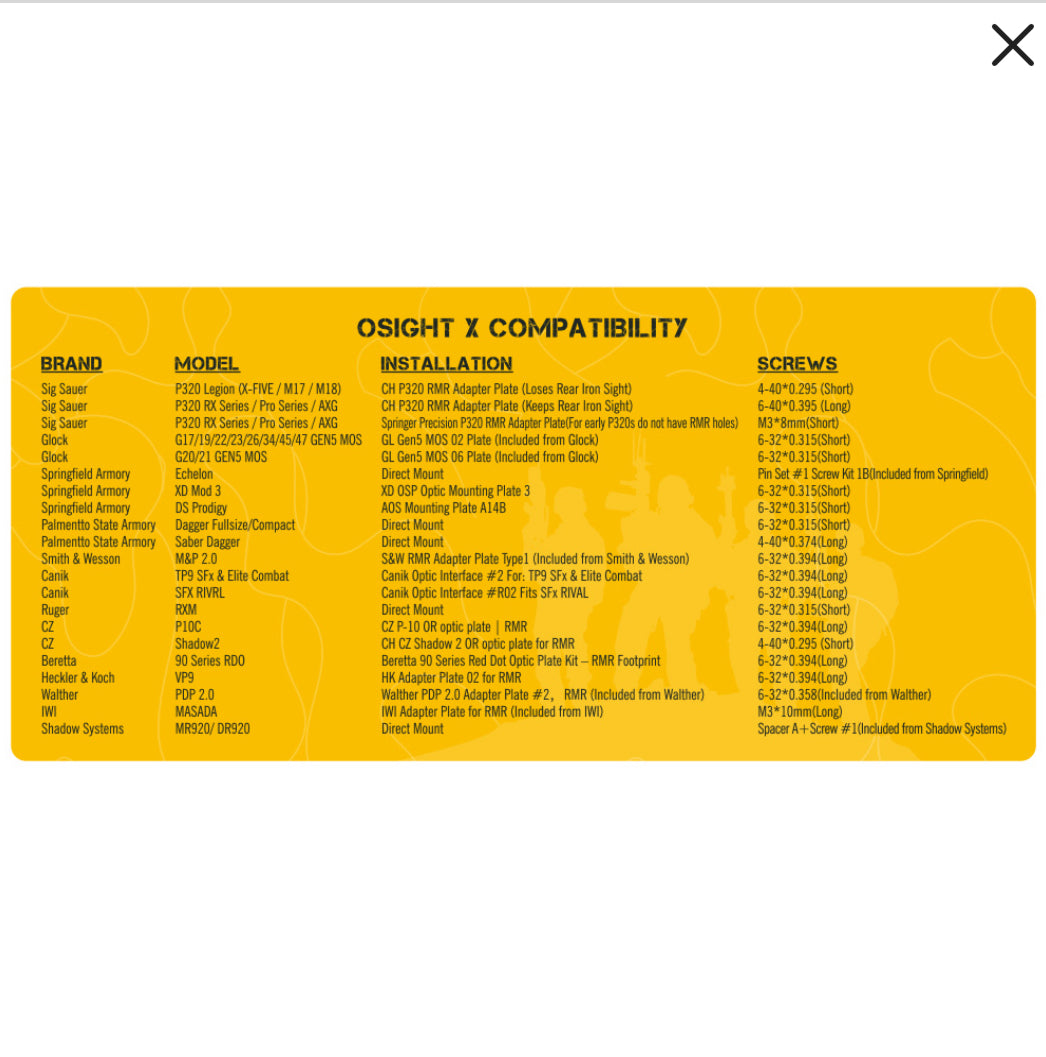

- Compatible Firearms Card ×1

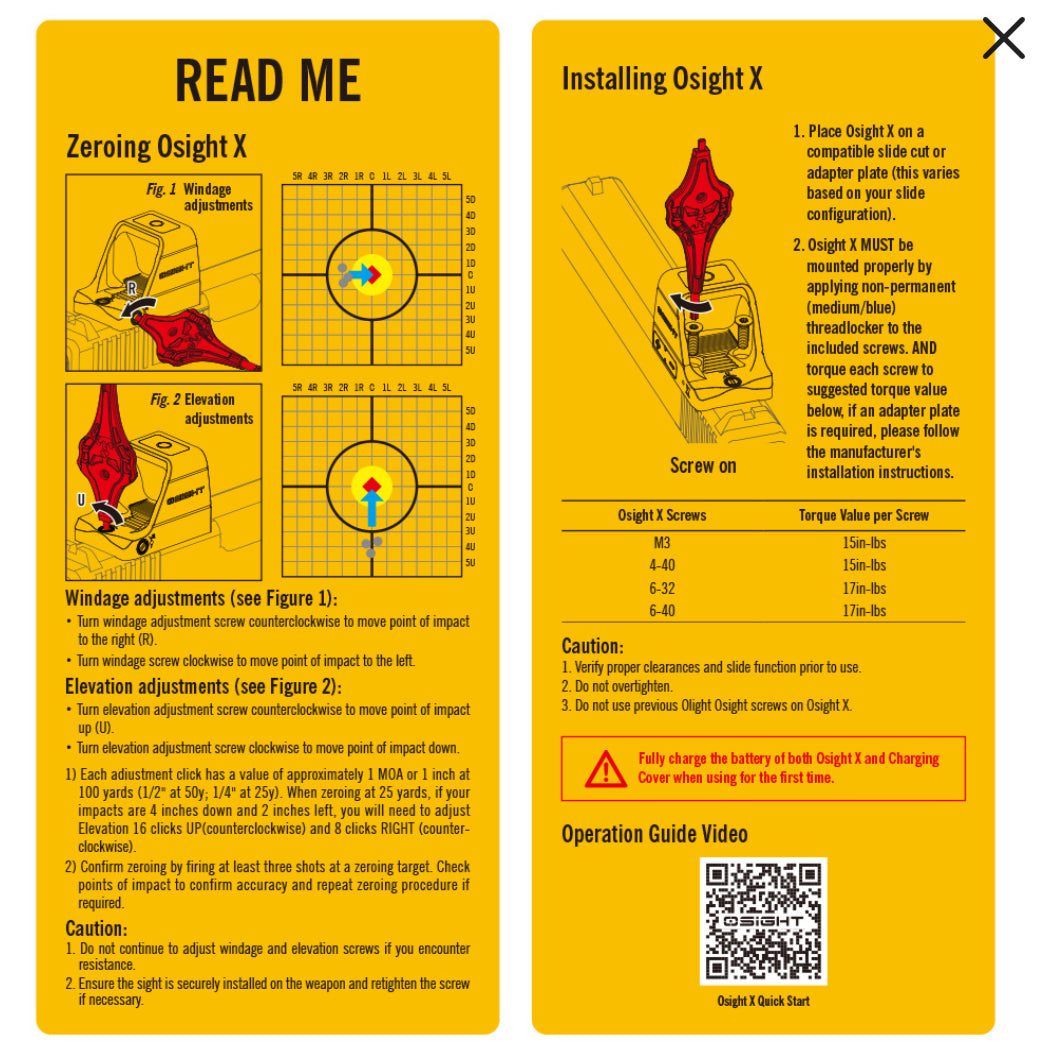

- Zeroing Instructions Card ×1
- USB-C Charging Cable ×1
- Osight X Screw Kit ×1
- User Manual ×1
