Ogura Hydraulic Rescue System (HRS) Breaching Tool

Ogura Hydraulic Rescue System (HRS) Breaching Tool

CALL US FOR PRICING

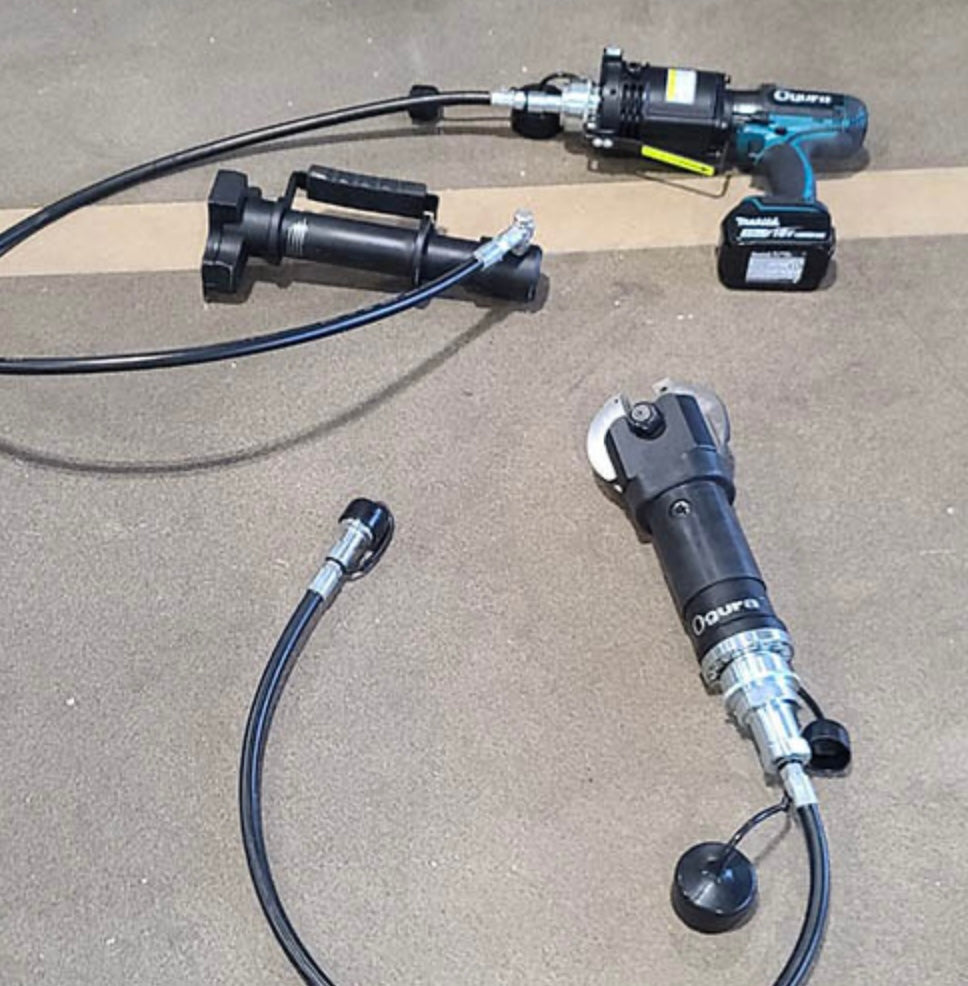

With the Ogura Hydraulic Rescue System (HRS), you can select the right tool for the job at the work site and while working.

• Our patented connection system makes it easy and secure to switch between the cutters, spreader, door openers, and small ram.
• The Head-units can be firmly linked to the Pump-unit thanks to the reliable quick-change coupling system, and the right Head-unit may be chosen and swapped out on the spot as needed.
• In the event of a civil disturbance, such a technology may be used to free demonstrators and tear down barricades, as well as for confined and distant rescue operations, and even urban search and rescue.
• Because of its small profile, the Handy Rescue System may access areas that would be inaccessible to bigger equipment. This makes it perfect for use in tight spaces where larger rescue equipment would be impractical.
• There is a remotely controlled expansion hose that may be attached between the head unit and the pump unit for use in areas with very restricted access.
• Because of its small size, mobility, and lack of obtruding hoses, this tool is ideal for usage on trains, buses, and aircraft, among other limited locations.

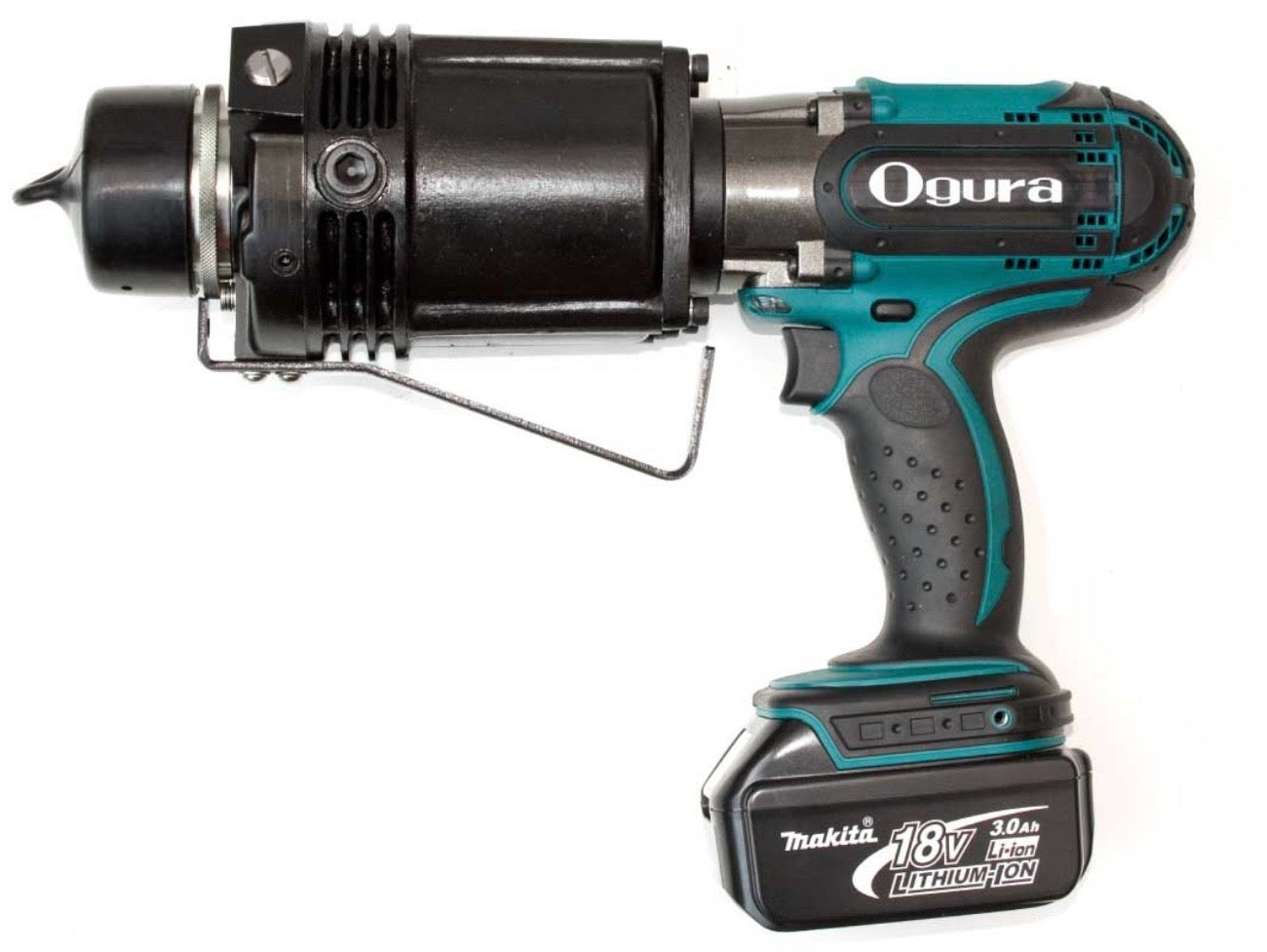

Model HRS-941 DF Pump Unit

• Motor: DC 18 V
• Weight: 4.2 kg / 9.3 los (incl. battery)
• Dimensions: (L x W x H)328 x 111 × 273 mm
  12.9 x 4.4 × 10.7 in
• Standard Accessories: Battery, Charger, Carrying Case, 1m expansion hose, when purchase together with HRS-932, 932s or 934
• Option: 3m expansion hose

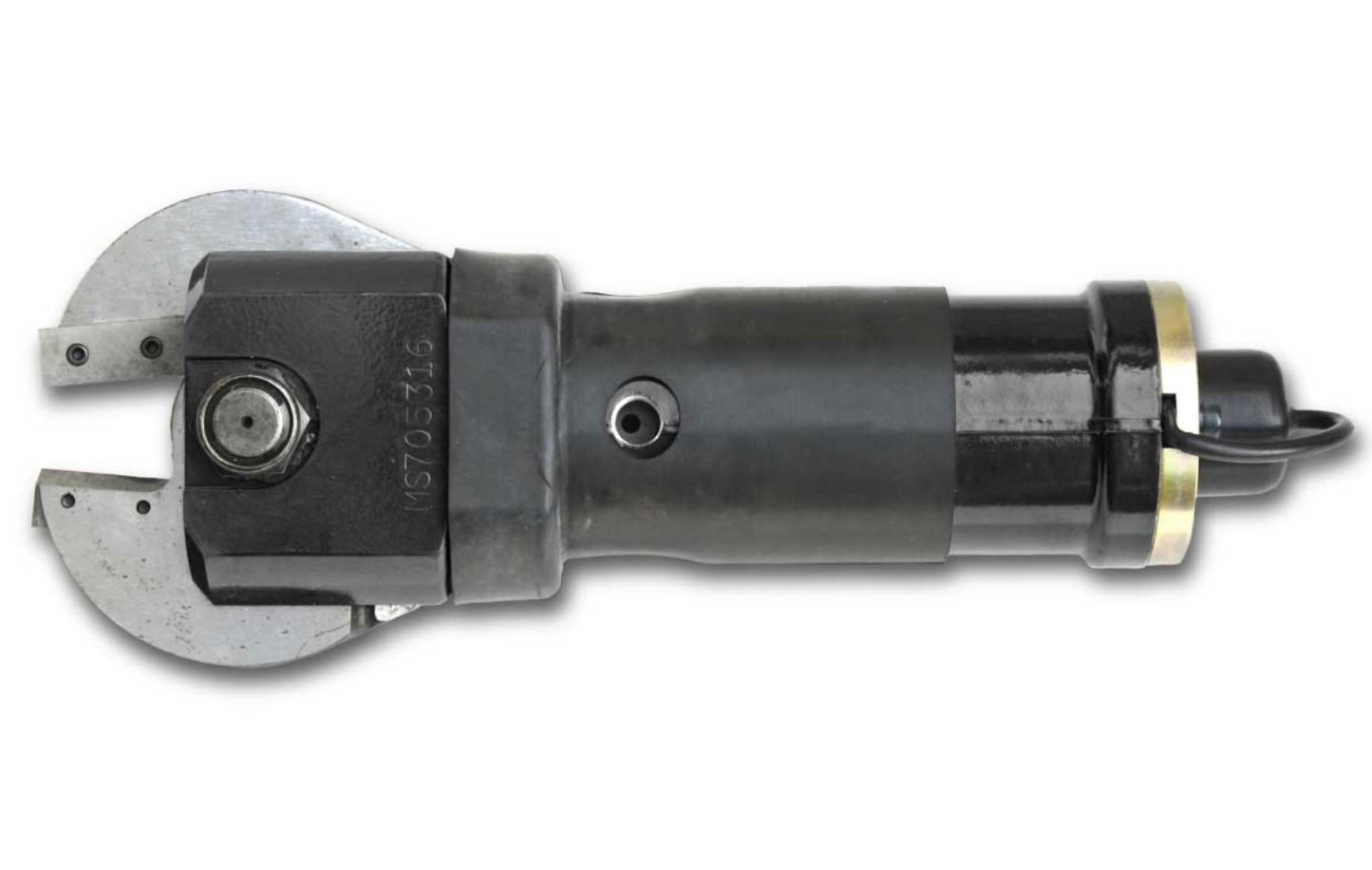

HRS-932S "Stubby" Shear Head

• Cutting Force: 78.4KN (8.0t) / 17,640 los
• Cutter Opening: 26 mm / 1.0 in
• Weight: 5.7 kg / 12.6 lbs
• Dimensions: (L x W x H) 328 × 130 x 104 mm (12.9 x 5.1 x 4.1 in)
• Standard Accessory: Grip Handle

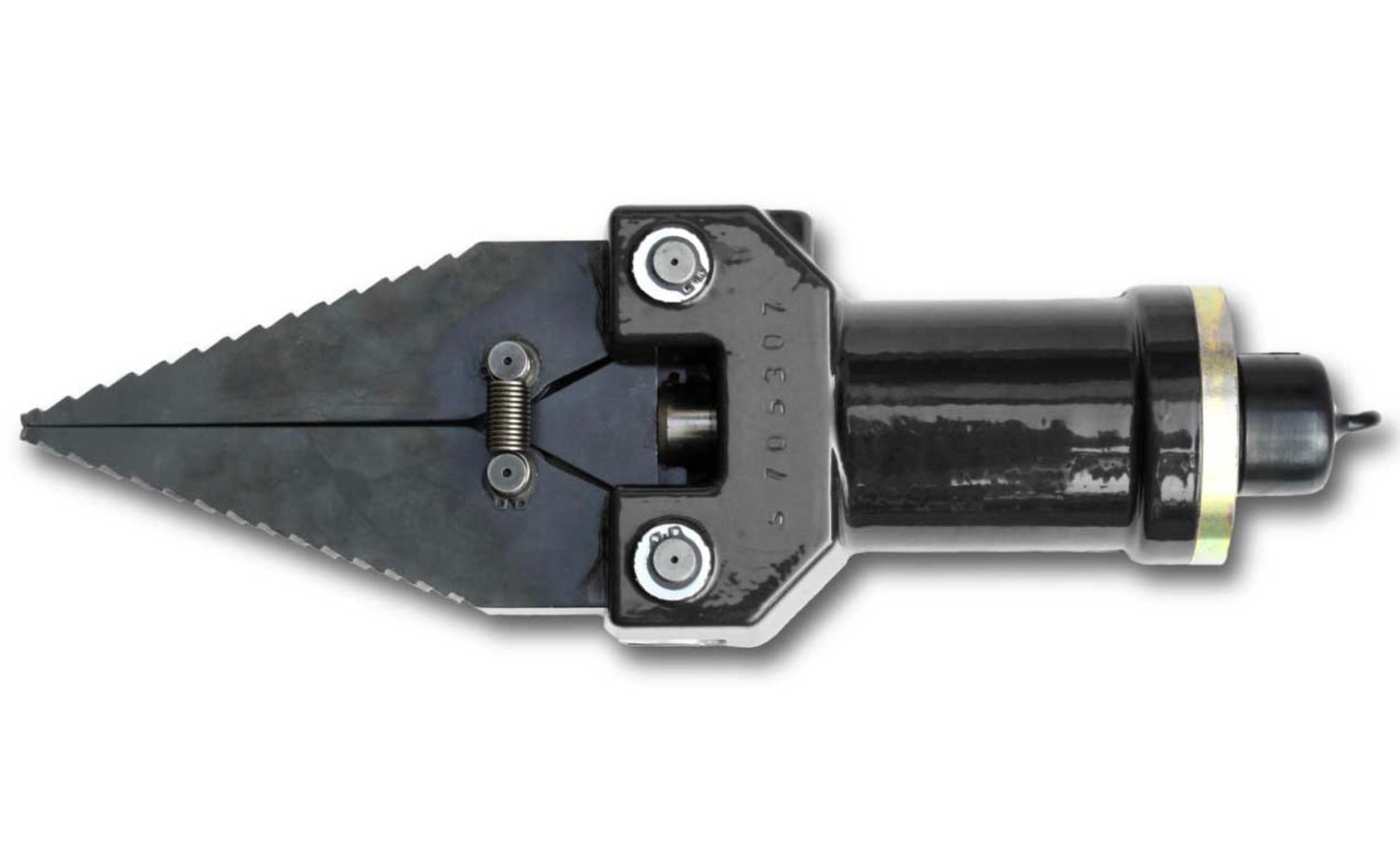

HRS-934 Spreader

• Spreading Force at the tips: 39.3 kN (4.0 t) / 8,820 lbs
• Spreading Distance: 158 mm / 6.2 in
• Weight: 5.4 kg / 11.9 lbs
• Dimensions (L x W x H): 352 × 121 x 78 mm, 13.9 x 4.8 × 3.1 in
• Standard Accessory: Grip Handle
